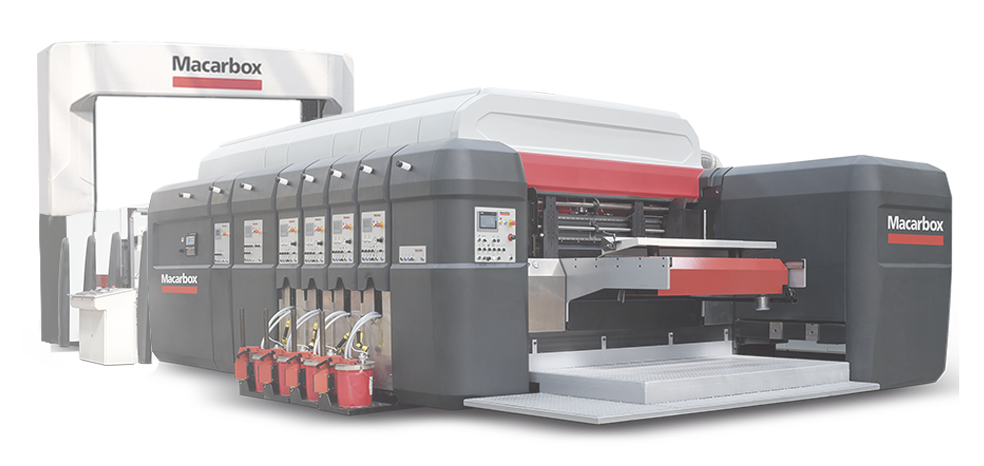

Rotary Die Cutter (RDC)
Flexographic printing, die cutting and stacking in line for high performance production of die-cut boxes.
The Rotary Die Cutter is available in both Open/Close and Fixed types.
The Fixed RDC suits to clients that work with short runs and look for high productivity as the operators can access and prepare next orders in the unused printing stations while the machine is working.
The Open/Close RDC is aimed at clients who work medium and large runs and look for versatility. The order set up is made with the machine stopped and the printing stations open for the corresponding changes: clichés, ink color, anilox rolls…
Features
- High performance production orientated to die-cut boxes.
- Quick die-change system.
- Automatic Anvil grinding system.
- High quality flexographic printing at high working speed.
- Production speed up to 25000 box/hour.
- Up to 4 outs/piles.
- Stripping station.
- Innovative doctor blade chamber: automatic inking and wash-up, without side seals, low maintenance, etc.
- Possibility to print both inner and outer faces of the sheets.
- Vacuum sheet transfer along the machine.
- Available with Direct Drive or Gear transmission.
Technical data
| Technical Characteristics | 970 mm | 1300 mm | 1676 mm | 2185 mm |
|---|---|---|---|---|
| Working Width (WW) | 2000 mm | 2400 mm | 2400 mm | 2800 mm | 3200 mm | 2400 mm | 2800 mm | 3200 mm | 3600 mm | 4500 mm | 5500 mm |
| Minimum sheet size | 405 x 250 mm | 660 x 320 mm | 720 x 450 mm | 950 x 700 mm |
| Maximum sheet size | WW x 890 | WW x 1190 | WW x 1535 mm | WW x 2000 |
| Maximum sheet size with skip feed | WW x 1200 mm | WW x 1700 mm | WW x 2000 mm | WW x 2500 |
| Maximum sheet size with extended slot | WW x 1700 mm | WW x 2400 mm | WW x 3000 mm | WW x 4000 mm |
| Max. mechanical speed | 20000/h | 15000/h | 10500/h | 6000/h |
| Board caliper | 1,5 - 8 mm | 1,5 - 10 mm | 1,5 - 14 mm | 2 - 16 mm |
| Technical Characteristics | 38" | 51" | 66" | 86" |
|---|---|---|---|---|
| Working Width (WW) | 78,7" | 94,5" | 94,5" | 110,2" | 126,7" | 94,5" | 110,2" | 126" | 141,7" | 177,2" | 216" |
| Minimum sheet size | 16" x 9,8" | 26" x 12,6" | 28,3" x 17,7" | 37" x 28" |
| Maximum sheet size | WW x 35" | WW x 46,9" | WW x 60,4" | WW x 79" |
| Maximum sheet size with skip feed | WW x 47,2" | WW x 66,9" | WW x 79" | WW x 98" |
| Maximum sheet size with extended slot | WW x 67" | WW x 94" | WW x 118" | WW x 157" |
| Max. mechanical speed | 20000/h | 15000/h | 10500/h | 6000/h |
| Board caliper | 0,06" - 0,39" | 0,06" - 0,47" | 0,06" - 0,55" | 0,08" - 0,63" |
Modules
It is possible to aquire single modules. In addition Macarbox offers you the service of retroffiting your current machines
These modules configure the complete machine
Feeder FFG
Flexo Modules
Double Slotter
Rotary Die Cutter

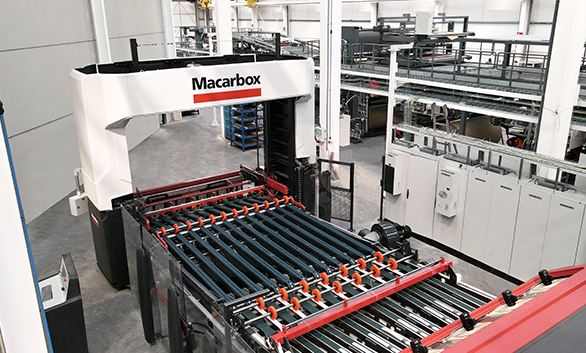

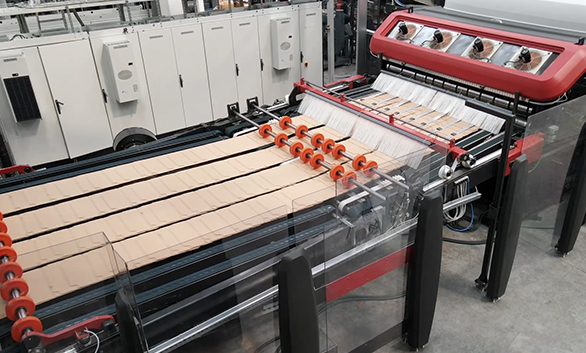

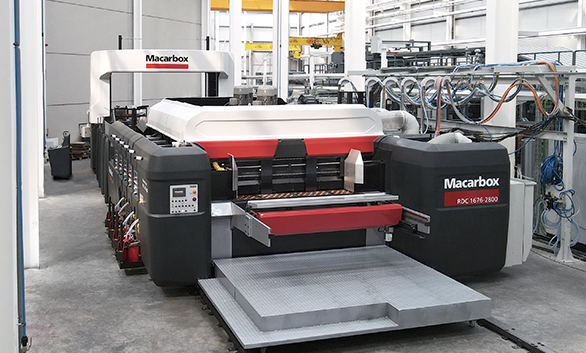

Gallery
