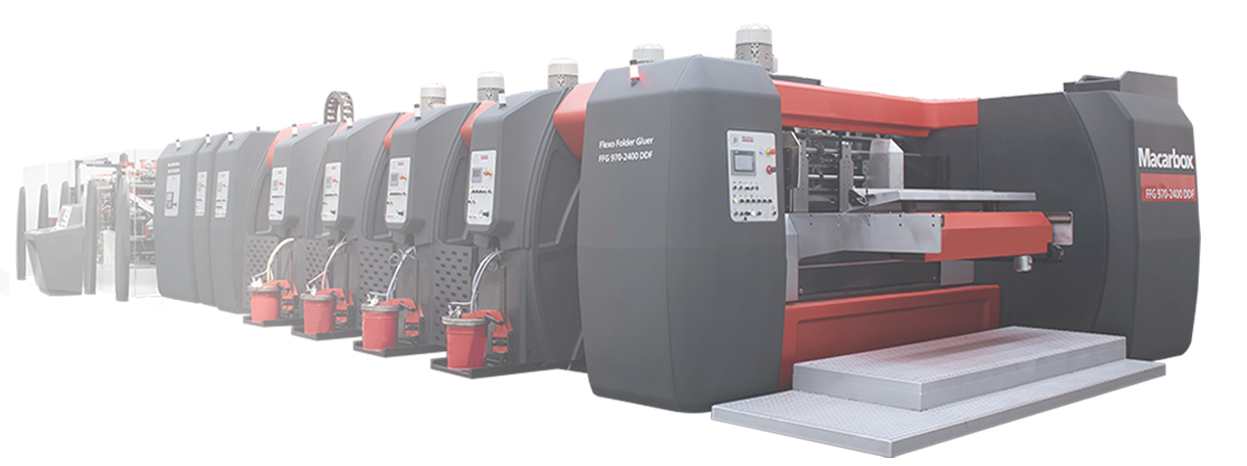

Flexo Folder Gluer (FFG)
Quick set up, versatility and robustness for highest productivity
Macarbox offers both Open/Closed and Fixed type FFG machines.

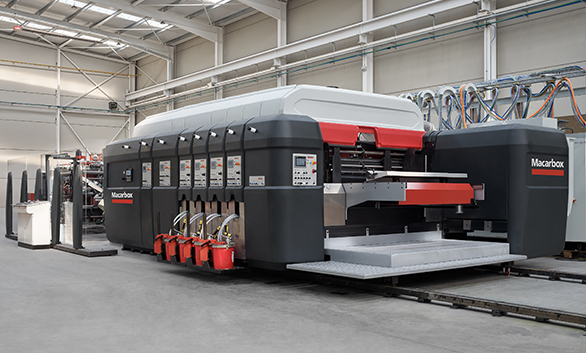

The Open/Close FFG is highly versatile. Printing stations can be opened to make the corresponding changes for the set up of next orders.

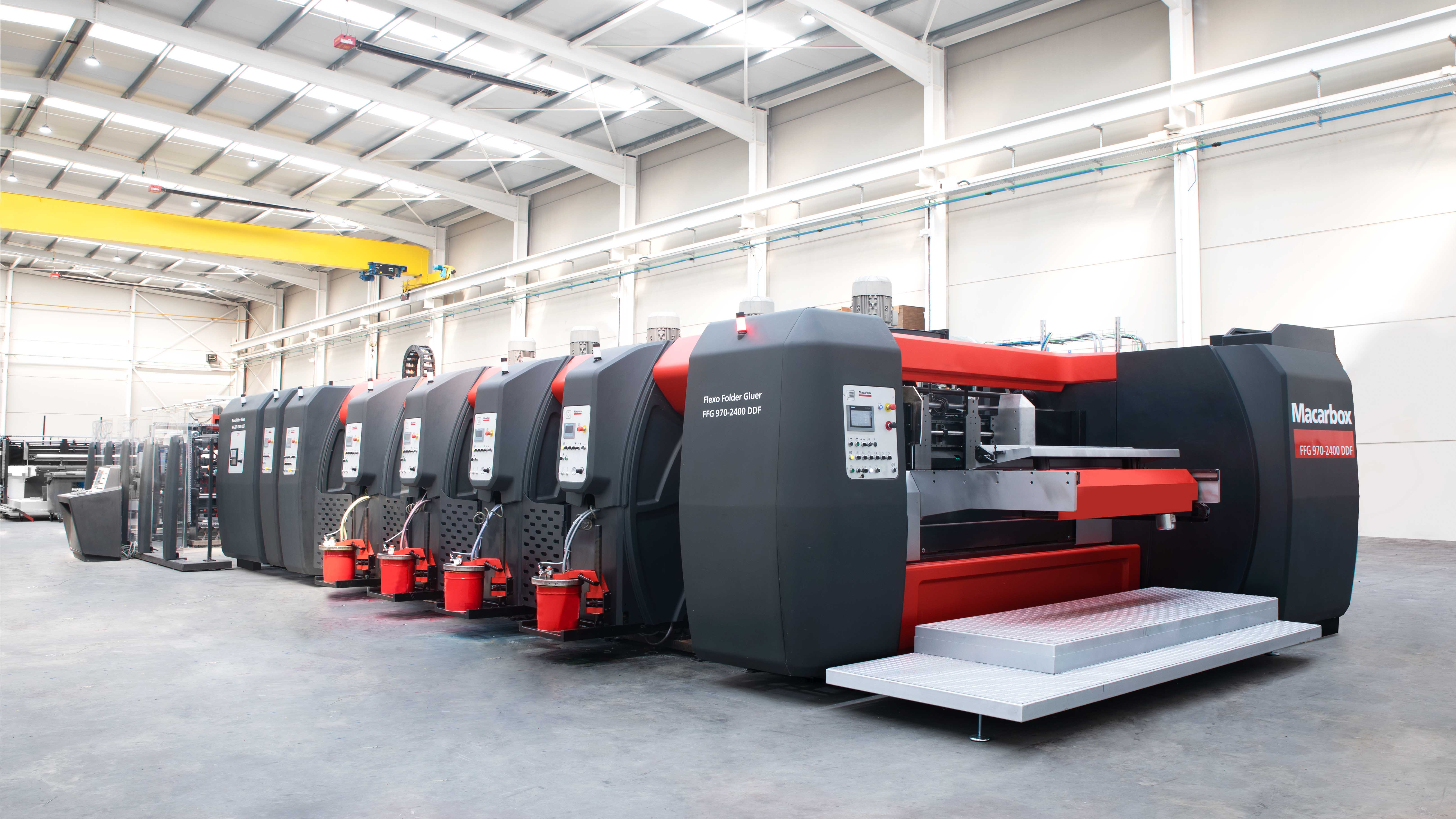

As regards to the Fixed FFG, its main target is high productivity as the printing modules are fixed and spaced between each other allowing the operators to access and prepare next orders on unused printing units while the machine keeps running.
Features
- High versatility and performance.
- High quality flexographic printing at high working speed.
- Speed production up to 24000 box/hour.
- Fast and automatic order changes.
- Innovative doctor blade chamber: automatic inking and wash-up, no side seals required, low maintenance, etc.
- Possibility to print both inner and outer faces of the sheets.
- Multifold system: 2-3 boxes from 1 single sheet.

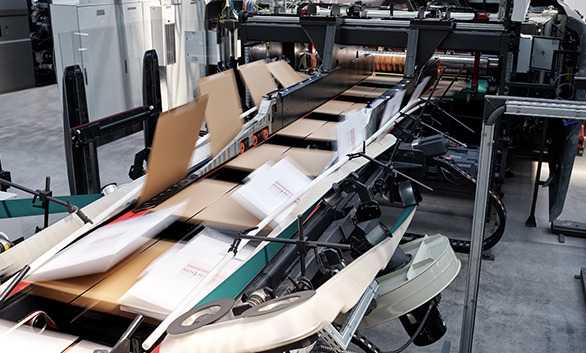

- Vacuum sheet transfer along the machine.
- Available with Direct Drive or Gear transmission.
Technical data
| Technical Characteristics | 710 mm | 970 mm | 1300 mm | 1676 mm | 2185 mm |
|---|---|---|---|---|---|
| Working Width (WW) | 1800 mm | 2200 mm | 2000mm | 2400mm | 2400mm | 2800mm | 3200mm | 2400mm | 2800 mm | 3200 mm | 3600 mm | 4500mm | 5500 mm |
| Minimum sheet size | 385 x 200 mm | 405 x 250 mm | 660 x 320 mm | 720 x 450 mm | 950 x 700 mm |
| Maximum sheet size | WW x 650 mm | WW x 890 mm | WW x 1190 mm | WW x 1535 mm | WW x 2000 mm |
| Maximum sheet size with skip feed | WW x 915 mm | WW x 1200 mm | WW x 1700 mm | WW x 2000 mm | WW x 2500 mm |
| Maximum sheet size with extended slot | WW x 1200 mm | WW x 1700 mm | WW x 2400 mm | WW x 3000 mm | WW x 4000 mm |
| Max. mechanical speed | 24000 b/h | 20000 b/h | 15000 b/h | 6000 - 10500 b/h | 6000 b/h |
| Board caliper | 1,5 - 8 mm | 1,5 - 10 mm | 1,5 - 12 mm | 1,5 - 14 mm | 2 - 16 mm |
| Technical Characteristics | 28" | 38" | 51" | 66" | 86" |
|---|---|---|---|---|---|
| Working Width (WW) | 71" | 86,6" | 78,7" | 94,5" | 94,5" | 110,2" | 126" | 94,5" | 110,2" | 126" | 141,7" | 177,2" | 216" |
| Minimum sheet size | 15,2" x 7,9" | 16" x 9,8" | 26" x 12,6" | 28,3" x 17,7" | 37" x 28" |
| Maximum sheet size | WW x 25,6" | WW x 35" | WW x 46,9" | WW x 60,4" | WW x 79" |
| Maximum sheet size with skip feed | WW x 36" | WW x 47,2" | WW x 66,9" | WW x 78,7" | WW x 98" |
| Maximum sheet size with extended slot | WW x 47" | WW x 67" | WW x 94" | WW x 118" | WW x 157" |
| Max. mechanical speed | 24000 b/h | 20000 b/h | 15000 b/h | 6000 - 10500 b/h | 6000 b/h |
| Board caliper | 0,06" - 0,31" | 0,06" - 0,39" | 0,06" - 0,47" | 0,06" - 0,55" | 0,08" - 0,63" |
Modules
It is possible to aquire single modules. In addition Macarbox offers you the service of retroffiting your current machines
These modules configure the complete machine
Feeder FFG
Flexo Modules
Double Slotter
Rotary Die Cutter
Folder & Gluer
Stitcher
Counter Ejector
